Product Details

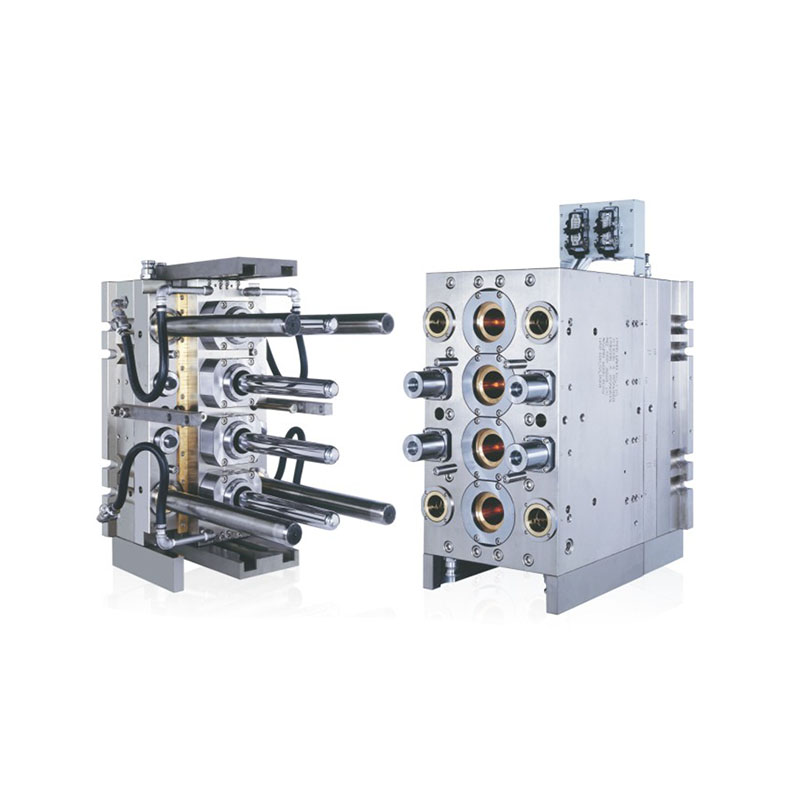

Yanjun Mould can offer the preform mould of 6 cavities for 5gallons and 3 gallons bottles. And the special design of valvegate hot runner makes sure preforms without fault.
CAV.NO | BOTLE | PET PREFORM | CYCLE TIME | PET PREFORM MOULD | ||||
|---|---|---|---|---|---|---|---|---|
| Volume | Weight | Neck size | Wall thickness | Length | Weight | Dimension(LxWxH) | ||
| g | mm | mm | mm | Sec | kg | mm | ||
| 1 | 3gal | 300 | 55 | 6.7 | 290 | 70 | 230 | 540X430X475 |
| 5gal | 720 | 55 | 9.2 | 420 | 120 | 250 | 540X430X520 | |
| 2 | 3gal | 300 | 55 | 6.7 | 290 | 75 | 300 | 470X300X608 |
| 5gal | 720 | 55 | 9.2 | 420 | 125 | 330 | 470X300X608 | |
| 4 | 3gal | 300 | 55 | 6.7 | 290 | 80 | 400 | 490X480X610 |
| 5gal | 720 | 55 | 9.2 | 420 | 130 | 440 | 490X480X730 | |
