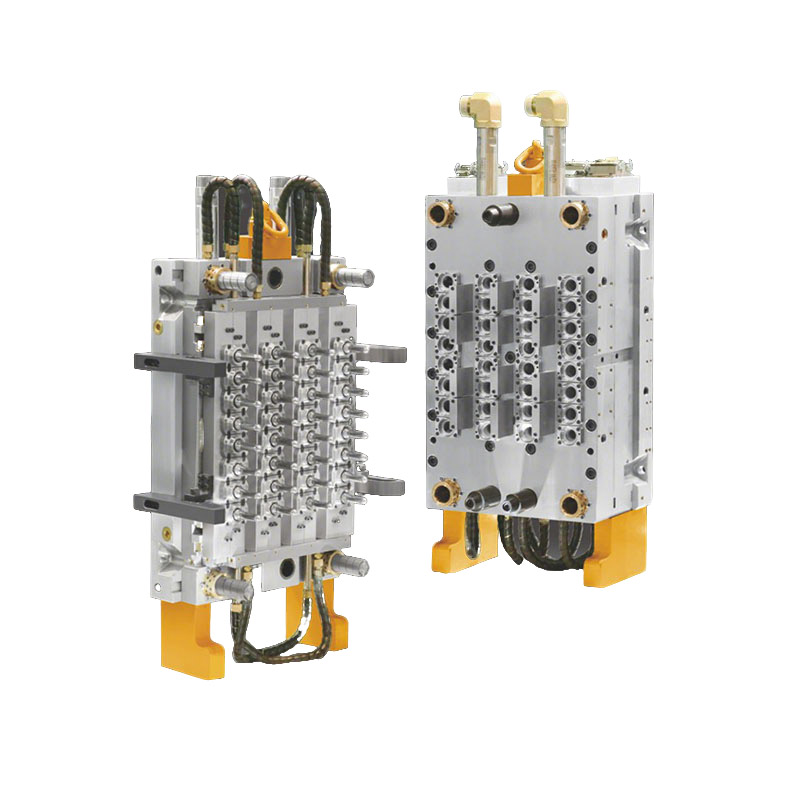

Product Details
Standard mould design and manufacture make the mould quality stable, and shorten the delivery time.
| CAV.NO | BOTLE | PET PREFORM | CYCLE TIME | PET PREFORM MOULD | |||||
|---|---|---|---|---|---|---|---|---|---|
| Volume | Types | Weight | Neck size | Wall thickness | Length | Sec | Weight | Dimension(LxWxH) | |
| g | mm | mm | mm | kg | mm | ||||
| 32 | 350 | Carbonated soft drinks | 21 | 28 | 2.9 | 91 | 24 | 1420 | 810X590X465 |
| Non-carbonted waters | 16 | 30 | 2.6 | 86 | 22 | 1405 | 810X590X460 | ||
| Edible oils | 19 | 29 | 2.9 | 84 | 24 | 1400 | 810X590X458 | ||
| 600 | Carbonated soft drinks | 28 | 28 | 3.4 | 110 | 28 | 1540 | 810X590X500 | |
| Non-carbonted waters | 20 | 30 | 2.8 | 93 | 23 | 1420 | 810X590X468 | ||
| Edible oils | 25 | 29 | 3.1 | 105 | 26 | 1520 | 810X590X495 | ||
| 1500 | Carbonated soft drinks | 48 | 28 | 3.9 | 140 | 38 | 1640 | 810X590X530 | |
| Non-carbonted waters | 36 | 30 | 3.35 | 126 | 28 | 1590 | 810X590X515 | ||
| Edible oils | 30 | 29 | 3.2 | 124 | 28 | 1590 | 810X590X515 | ||
| 24 | 350 | Carbonated soft drinks | 21 | 28 | 2.9 | 91 | 22 | 1000 | 770X450X455 |
| Non-carbonted waters | 16 | 30 | 2.6 | 86 | 20 | 990 | 770X450X450 | ||
| Edible oils | 19 | 29 | 2.9 | 84 | 22 | 990 | 770X450X448 | ||
| 600 | Carbonated soft drinks | 28 | 28 | 3.4 | 110 | 26 | 1070 | 770X450X485 | |
| Non-carbonted waters | 20 | 30 | 2.8 | 93 | 21 | 1000 | 770X450X457 | ||
| Edible oils | 25 | 29 | 3.1 | 105 | 24 | 1035 | 770X450X470 | ||
| 1500 | Carbonated soft drinks | 48 | 28 | 3.9 | 140 | 36 | 1170 | 770X450X530 | |
| Non-carbonted waters | 36 | 30 | 3.35 | 126 | 26 | 1140 | 770X450X515 | ||
| Edible oils | 30 | 29 | 3.2 | 124 | 26 | 1140 | 770X450X513 | ||
