Product Details

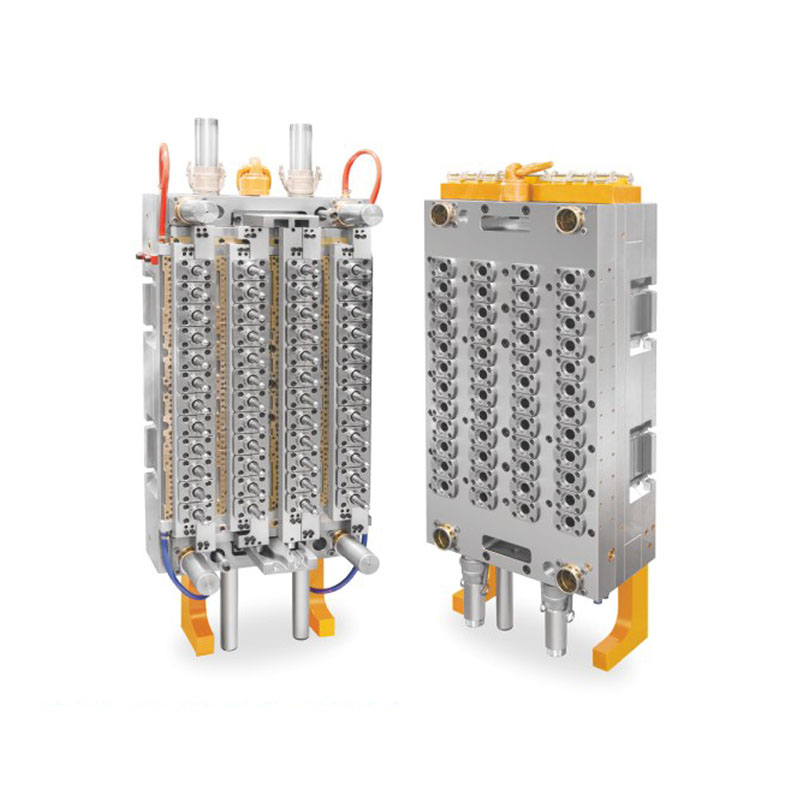

High capability Preform Mould
Base on decades of experience in mould manufacturing, continous innvoating and developing, YANJUN mouldswork stable and high speed
| CAV.NO | BOTLE | PET PREFORM | CYCLE TIME | PET PREFORM MOULD | |||||
|---|---|---|---|---|---|---|---|---|---|
| Volume | Types | Weight | Neck size | Wall thickness | Length | Injection time | Weight | Dimension(LxWxH) | |
| g | mm | mm | mm | Sec | kg | mm | |||
| 72 | 350 | Carbonated soft drinks | 21 | 28 | 2.9 | 91 | 26 | 3771 | 1200 × 850 × 540 |
| 48 | 350 | Carbonated soft drinks | 21 | 28 | 2.9 | 91 | 24 | 2029 | 1103 × 590 × 475 |
| Non-carbonted waters | 16 | 30 | 2.6 | 86 | 22 | 2006 | 1103 × 590 × 470 | ||
| Edible oils | 19 | 29 | 2.9 | 84 | 24 | 2006 | 1103 × 590 × 470 | ||
| 600 | Carbonated soft drinks | 28 | 28 | 3.4 | 110 | 28 | 2188 | 1103 × 590 × 505 | |
| Non-carbonted waters | 20 | 30 | 2.8 | 93 | 23 | 2042 | 1103 × 590 × 478 | ||
| Edible oils | 25 | 28 | 3.1 | 105 | 26 | 2143 | 1103 × 590 × 500 | ||
| 1500 | Carbonated soft drinks | 48 | 28 | 3.9 | 140 | 38 | 2371 | 1103 × 590 × 550 | |
| Non-carbonted waters | 36 | 30 | 3.35 | 128 | 28 | 2302 | 1103 × 590 × 535 | ||
| Edible oils | 30 | 29 | 3.2 | 124 | 28 | 2302 | 1103 × 590 × 535 | ||
